FEATURES

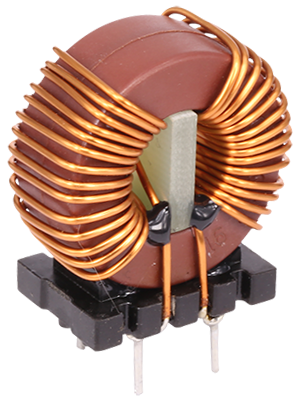

?Two sets of coils with the same number of turns are wound on the same magnet to suppress common-mode noise

?The compact and uniform winding process is adopted to effectively reduce the parasitic capacitance and improve the voltage resistance level between lines

?Nominal rated voltage 250Vac; Line-to-line insulation test voltage 1500Vac

?Operating temperature: -55 °C  to +125 °C

APPLICATION

?Power Line Input and Output Common Mode Noise Reduction and Surge Suppression (250Vac)

?Surge suppression and EMI filtering for power supply units

?Filtering of the floating device

?For EMI countermeasures

?AC/DC conversion, DC/AC inverter and other lines
